FSP1600E series

Products used in: communication equipment, network terminals, storage equipment, LED lamps, consumer electronics, power supply devices

Security equipment, etc.

Description: The FSP-38 series thermally conductive silicone sheets are made of silicone rubber as the matrix and filled with thermally conductive ceramic powder. They have good thermal conductivity and insulation. Features: Contains no harmful substances, insulation, excellent flame retardant properties, high and low temperature resistance, high compression performance, low oil yield, excellent thermal conductivity, can be used to fill structural gaps. Specification: 200mm*400mm Roll material Applications: Chips Routers Computers Mobile phones Light emitting diodes

Key words:

Classification:

Telephone:

Description:

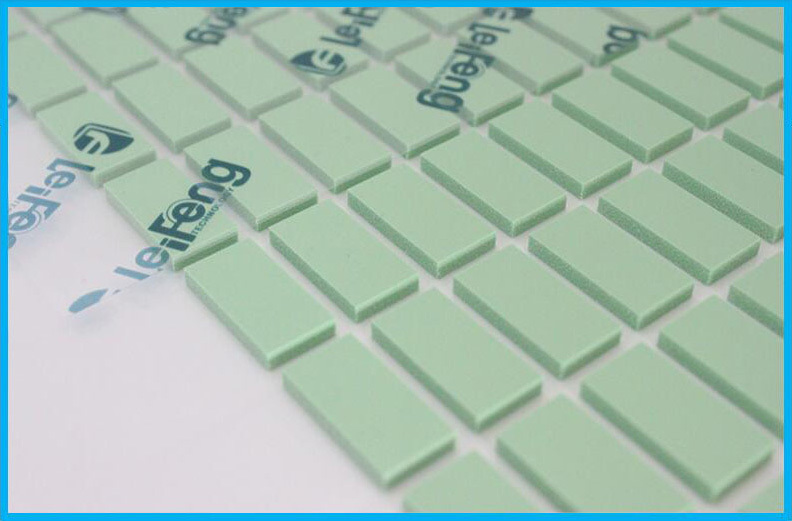

FSP-38 series thermally conductive silicone sheets are made with silicone rubber as the matrix and filled with thermally conductive ceramic powder. They possess excellent thermal conductivity and insulation properties.
Features:

◆Contains no harmful substances, insulation, excellent flame retardant performance, high and low temperature resistance, high compression performance
◆Low oil yield
◆Excellent thermal conductivity, can be used to fill structural gaps
Specification:
▲200mm*400mm
▲Roll material
Application：
●Chips
●Router
●Computer
●Mobile
●Light Emitting Diode

Project	Unit	FSP-3840	FSP-3860	Test Standard
Color	/	Blue	Blue	Visual Inspection
Density	g/cm³	2.6	2.6	ASTM D792
Thermal Conductivity	W/m.k	3.8	3.8	ASTM D5470
Breakdown Voltage	KV/mm	＞6	＞6	ASTM D149
Thickness (±10%)	mm	0.3~10.0	0.3~15.0	ASTM D374
Hardness	Shore OO	50	60	ASTM D2240
Flammability Rating	/	UL94-V0	UL94-V0	UL 94
Operating Temperature	℃	-40~+200	-40~+200	— —
Self-Adhesive	/	Double-sided adhesive	Double-sided slightly adhesive	— —
Adhesive Selection	/	√	√	— —
Fiberglass Reinforced	/	√	√	— —

We can customize according to Your Requests
