FSP1010S series
Products used in: communication equipment, network terminals, storage equipment, LED lamps, consumer electronics, power supply devices
Security equipment, etc.
Description:

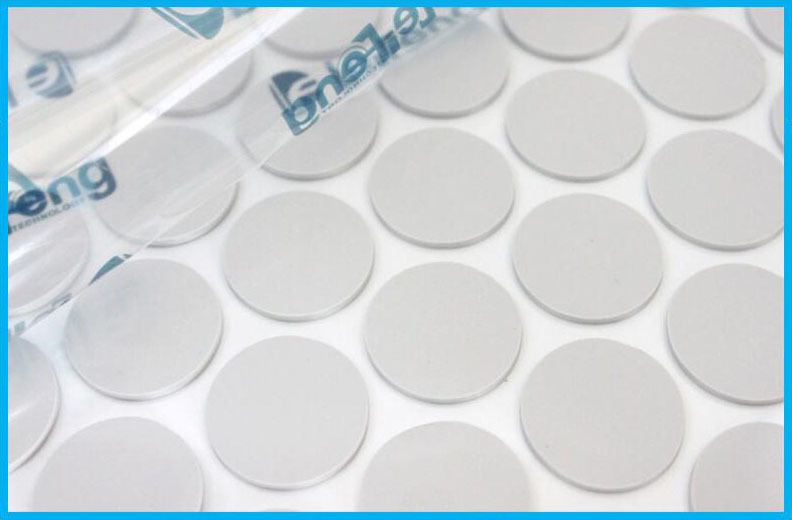

The FSP1010S series thermally conductive silicone sheets are made with silicone rubber as the matrix and filled with thermally conductive ceramic powder. They possess good thermal conductivity and insulation.
Characteristics:
Contains no harmful substances, insulation, excellent flame retardant properties, high and low temperature resistance, high compression performance, low oil yield, excellent thermal conductivity, suitable for filling structural gaps.
Specification:
200mm*400mm
Roll material
Applications:
Chips
Routers
Computers
Mobile phones
Power supplies
Key words:
Classification:
Description:
The FSP1010S series thermally conductive silicone sheets are made with silicone rubber as the base material and filled with thermally conductive ceramic powder. They possess excellent thermal conductivity and insulation properties.
Features:
Features:
◆Contains no harmful substances, insulation, excellent flame retardant performance, high and low temperature resistance, high compression performance
◆Low oil yield
◆Excellent thermal conductivity, can be used to fill structural gaps
Specification:
▲200mm*400mm
▲Roll material
Application：
●Chips
●Routers
●Computers
●Mobile
●Power supplies
| Project | Unit | FSP1010S-HS40 | FSP1010S-HS60 | Test Standard |
| Color | / | Gray-white | Gray-white | Visual Inspection |
| Density | g/cm³ | 2.1 | 2.1 | ASTM D792 |
| Thermal Conductivity | W/m.k | 1.2 | 1.2 | ASTM D5470 |
| Breakdown Voltage | KV/mm | ＞6 | ＞6 | ASTM D149 |
| Thickness (±10%) | mm | 0.3~10.0 | 0.3~15.0 | ASTM D374 |
| Hardness | Shore OO | 40 | 60 | ASTM D2240 |
| Flammability Rating | / | UL94-V0 | UL94-V0 | UL 94 |
| Operating Temperature | ℃ | -40~+200 | -40~+200 | — — |
| Self-Adhesiveness | / | Double-sided adhesive | Double-sided slightly adhesive | — — |
| Adhesive Selection | / | √ | √ | — — |
| Fiberglass Reinforced | / | √ | √ | — — |
| Can be customized according to Your Requests |
